Summary
- The Nocs Portal AFN7 is a screen-free 16MP compact with a digital viewfinder and 4K/30p.
- NocDoc enables shooting through Nocs binoculars and monoculars.
- Its IP56 construction and 140g weight target outdoor use.
- US pricing starts at $179.95.
Nocs Provisions is entering the screen-free compact category with the Portal AFN7, a small rugged 16MP camera that also records 4K video and can shoot through the company’s binoculars or monoculars.
There is no conventional rear display for reviewing images; a small 0.96-inch OLED is used for menu navigation, while framing is handled by a digital viewfinder.
Screen-free design with a digital viewfinder
The Portal AFN7 uses a 1/3.06-inch CMOS sensor and captures 16MP JPEG photos. Its fixed-focus f/2.2 lens focuses from 1 meter to infinity and Nocs lists a 22.5mm 35mm-equivalent focal length. It also offers 8x digital zoom, an LED flash, 1/30–1/1000 sec shutter speeds and ISO up to 1600.
Video reaches 4K UHD at 30 fps in MP4. It provides six image presets plus a no-filter mode.
NocDoc turns binoculars into a long lens

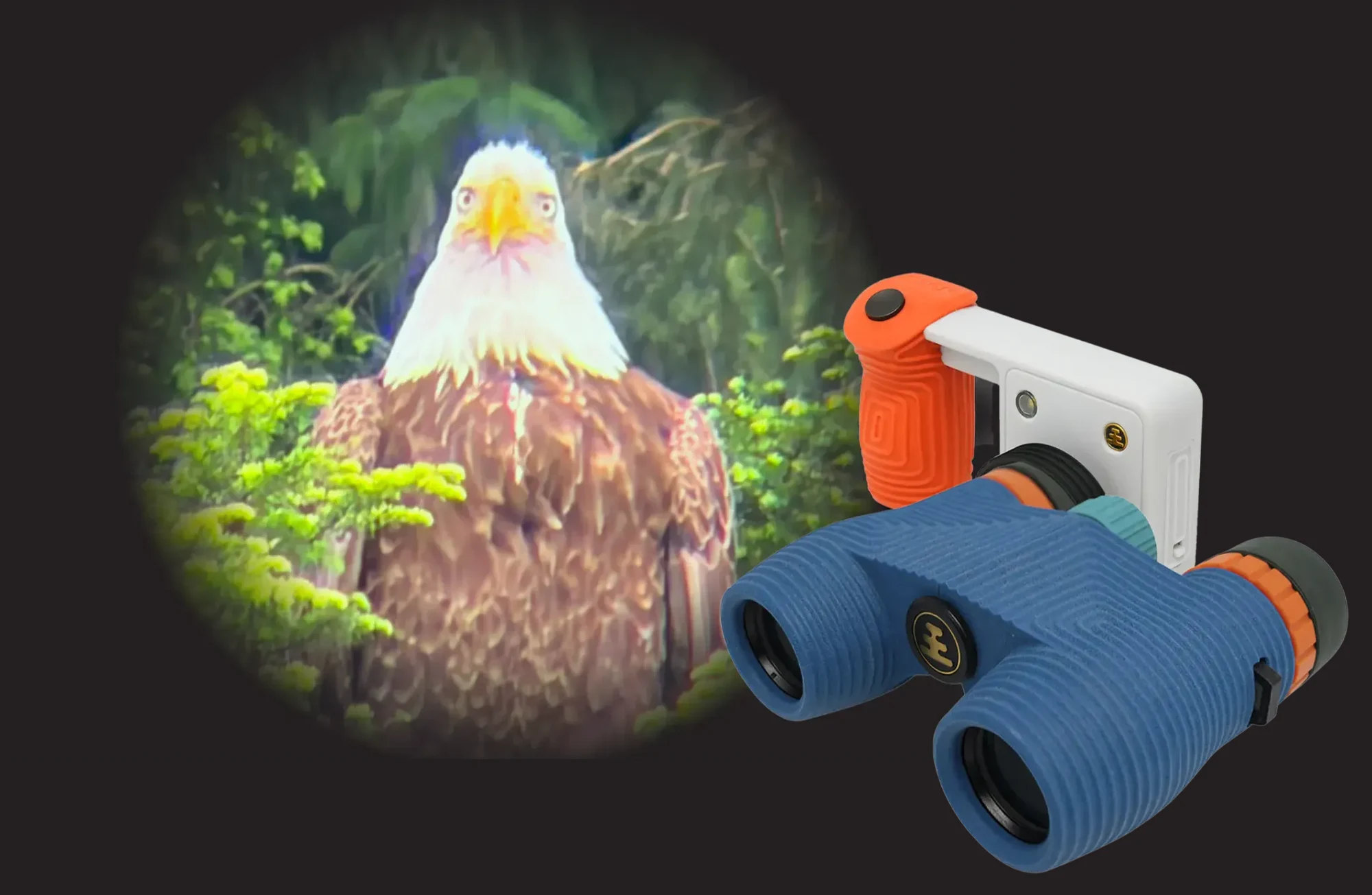

The most unusual feature is NocDoc, an alignment tool included in the box. It attaches to the camera bayonet and lets the eyecup of Nocs binoculars or a monocular sit in front of the camera lens.
The digital viewfinder shows the image reaching the sensor through the optics, with a grid and crosshairs for alignment. It is effectively digiscoping designed directly into the camera.
Built for outdoor use
The body weighs 140g and measures 122 × 73 × 44mm. Its IP56 rating protects against dust, rain and water spray, but not submersion. The rubberized ToughWave housing adds grip and impact protection.
The sealed, non-removable 1,100mAh Li-ion battery is rated by Nocs for up to roughly 2,250 photos or 180 minutes of continuous 4K. A 4GB microSD card is included and cards up to 128GB are supported. Charging and file transfer use USB-C.
Price and availability

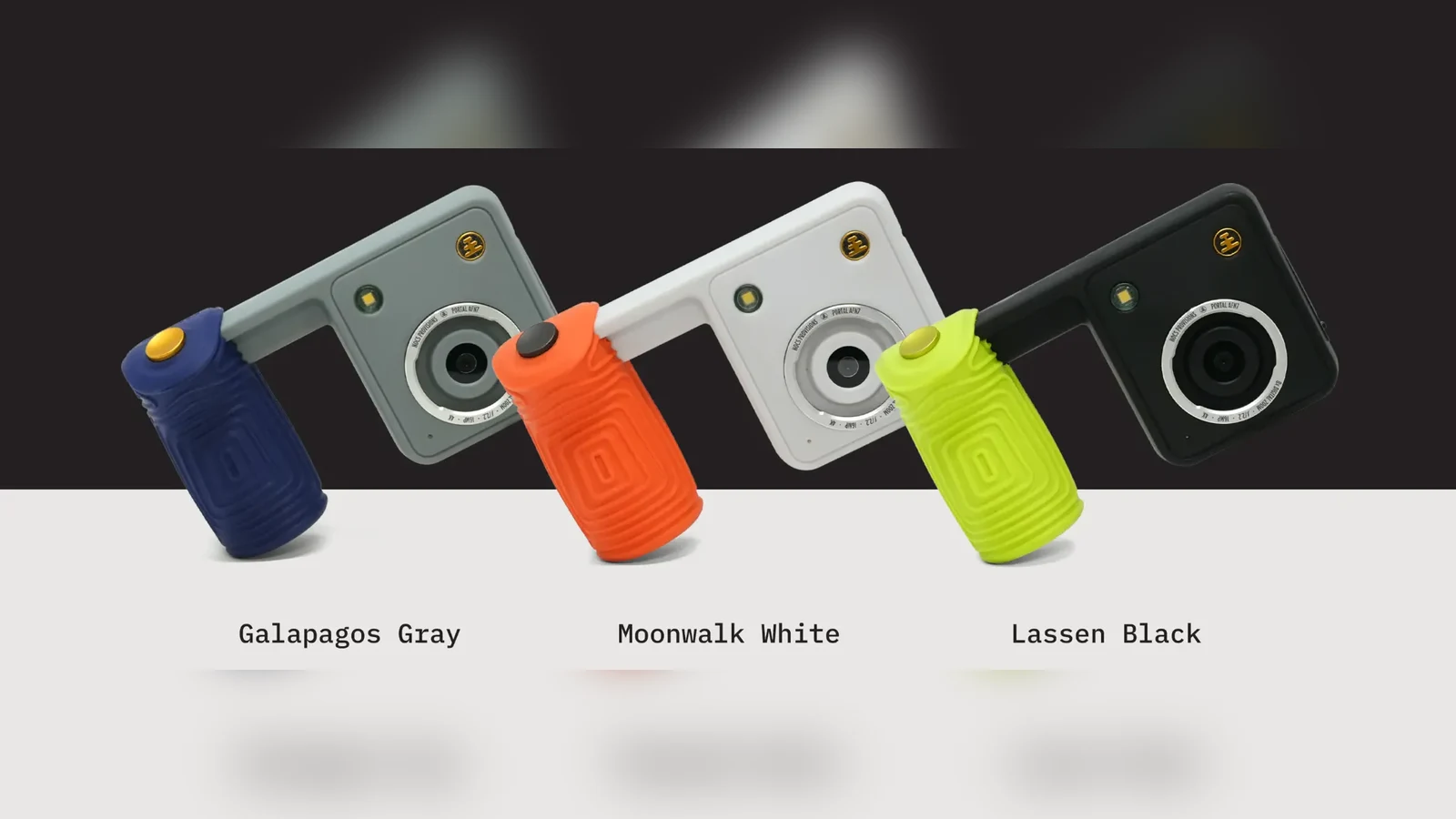

The Portal AFN7 starts at $179.95 in the US and comes in Galapagos Gray, Moonwalk White and Lassen Black. Nocs also offers international shipping, with taxes and import fees charged at checkout. No official European price in euros was found.
Read more here.
What we think
The Portal AFN7 is not aimed at challenging an advanced compact for image quality or control. Its appeal is the combination of a small rugged body, shooting without a conventional rear review screen and direct integration with Nocs optics, especially for hiking, birdwatching and casual digiscoping.
The small sensor, fixed focus and JPEG-only still output show that simplicity, rather than maximum post-processing flexibility, is the priority.
Frequently asked questions
Does the Portal AFN7 have a screen?
It has no conventional rear review display. It uses a digital viewfinder plus a 0.96-inch OLED for menu navigation.
Does it record 4K video?
Yes, it records 4K UHD at 30 fps in MP4.
Can it be used with binoculars?
Yes. NocDoc aligns the camera with Nocs binoculars or monoculars for shooting through the optics.
Is it waterproof?
It carries an IP56 rating for dust, rain and water spray, but is not intended for submersion.
