Viltrox DC-T1: A 5-Inch Full HD Monitor for Smartphones

Summary

• 5-inch IPS display with 1920 × 1080 resolution and 400-nit brightness
• Touch control for focus, exposure and shooting modes
• Wired USB-C connection requiring DisplayPort output support
• Four display modes, mirroring and False Color assistance
• 112-gram body, multiple mounting interfaces and reverse charging
• Priced at €109.25 through the Viltrox online store

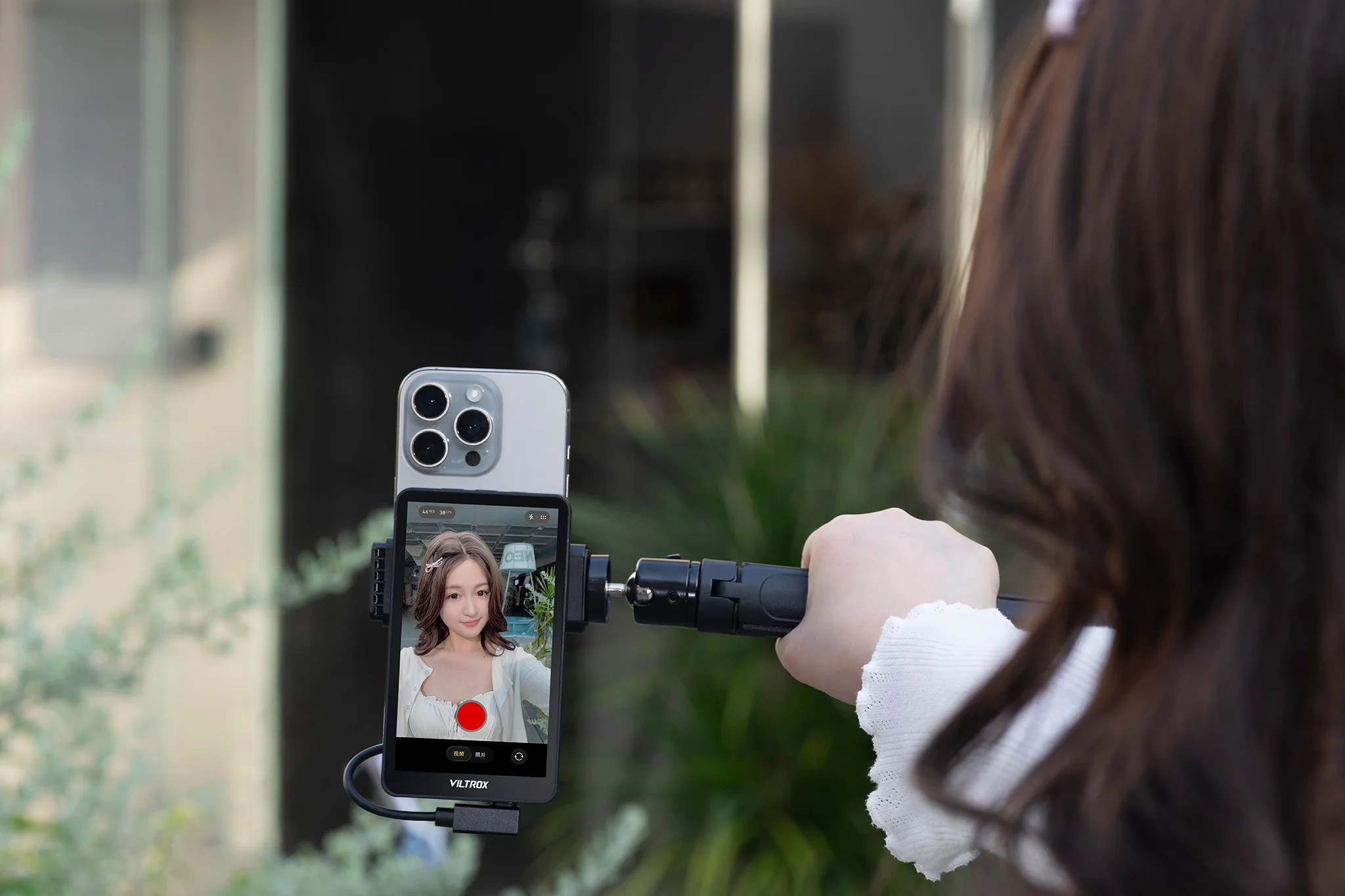

Viltrox has introduced the DC-T1, a portable 5-inch smartphone monitor featuring a Full HD touchscreen, wired USB-C connectivity and control over the phone’s camera.

The Viltrox DC-T1 is designed for content creators, mobile filmmakers and users who need a larger viewing surface when shooting with a smartphone, offering a 1920 × 1080-pixel resolution, 400-nit brightness and a weight of approximately 112 grams.

The device aims to simplify framing, image monitoring and the adjustment of key settings without requiring creators to repeatedly turn the smartphone around or interact directly with its main display.

5-Inch IPS Display with Full HD Resolution

The DC-T1 features a 5-inch IPS display with a resolution of 1920 × 1080 pixels, providing a larger viewing surface than a smartphone screen and making it easier to inspect framing details.

Its viewing angle reaches 160 degrees, allowing the image to remain visible from different shooting positions. The maximum brightness of 400 nits is mainly intended for everyday monitoring indoors and outdoors, although it does not place the device among particularly bright professional field monitors.

Users can choose between three brightness levels to adapt the display to different environmental conditions.

Camera Control Through the Touchscreen

One of the main features of the Viltrox DC-T1 is its ability to control smartphone camera functions directly through the monitor’s touchscreen.

According to Viltrox, users can adjust focus, exposure and shooting modes without accessing the phone’s primary display. This function may be useful for selfie recording, livestreaming, interviews or situations in which the smartphone is mounted inside a cage, on a gimbal or in an inverted configuration.

The exact range of available controls may depend on the connected smartphone, its operating system and the camera application being used.

Wired Monitoring Through USB-C

Video transmission is handled through a wired USB-C connection. Viltrox says this approach provides more stable operation, lower latency and a reduced risk of interference or disconnection compared with a wireless solution.

For video monitoring to work, the smartphone or connected device must have a USB-C port supporting DisplayPort video output. This means that the DC-T1 is not compatible with every phone that simply includes a USB-C connector.

The wired connection makes it suitable for fixed mobile rigs, livestreaming and productions where reliable monitoring is more important than fully wireless operation.

Four Viewing Modes and False Color

The DC-T1 supports four display orientations, including vertical flipping and image mirroring.

These options allow users to maintain the correct image orientation when the monitor or smartphone is mounted upside down, sideways or facing the person being recorded.

A False Color function is also available, displaying different parts of the image with color coding to help users evaluate exposure levels more quickly. The function is activated by holding down the corresponding control.

Physical Controls for Quick Adjustments

In addition to its touchscreen, the monitor includes physical controls for frequently used functions.

Users can quickly change the brightness level, image orientation or exposure assistance mode without significantly interrupting the shooting process.

This approach can be particularly practical when the monitor is used outdoors, mounted on a gimbal or installed in a setup where touchscreen menu access is not always convenient.

112-Gram Body and Fanless Cooling

The Viltrox DC-T1 weighs approximately 112 grams, keeping the overall weight of a mobile rig relatively low.

Viltrox states that the device has been designed for continuous monitoring and longer recording sessions, using a fanless thermal management system. This prevents additional operating noise during audio recording while helping the body remain compact.

Its low weight may be especially important for handheld recording and gimbal use, where every additional accessory affects balance and user fatigue.

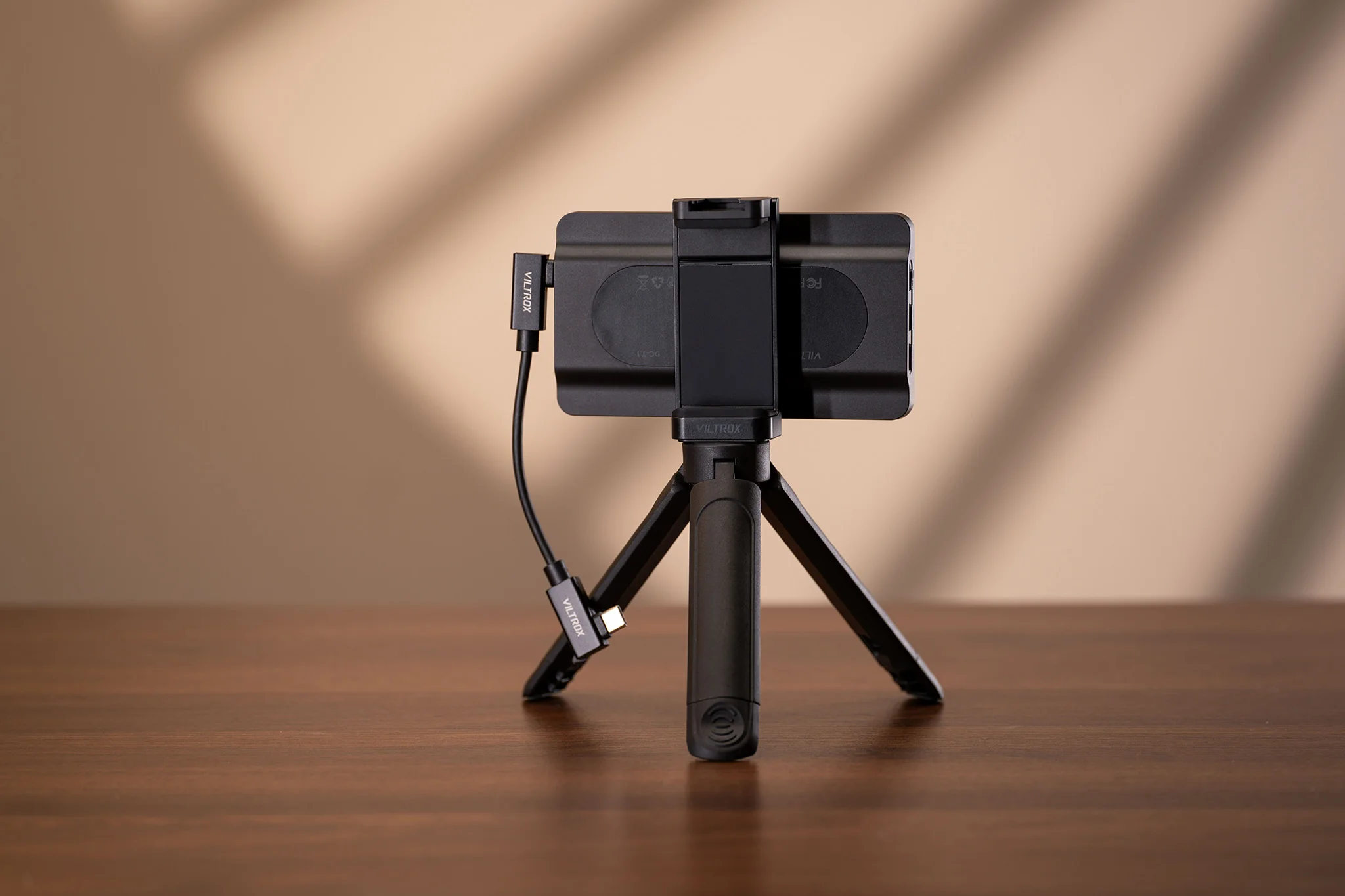

Connectivity and Mounting Options

The DC-T1 includes a cold shoe, a 1/4-inch thread and an ARRI-style locating interface.

These mounting points allow the monitor to be installed on tripods, cages, handles and gimbals, while also helping creators expand their rigs with microphones or lights.

USB-C audio support is also listed, broadening its potential use in more complex mobile production configurations.

Reverse Smartphone Charging

The Viltrox DC-T1 supports reverse charging, allowing it to supply power to the connected smartphone and extend the available recording time.

This can be useful during livestreams and long recording sessions, as continuous USB-C video output and camera operation can place significant demand on a phone’s battery.

The available product description does not provide detailed information about charging power or the power source required for this function.

Price and Availability

The Viltrox DC-T1 is listed on the company’s online store at €109.25, reduced from €115.

Viltrox advertises free shipping from local warehouses in the European Union and the United States, a one-year warranty and returns or exchanges within seven days of delivery, subject to the store’s terms.

Find it here.

What We Think

The Viltrox DC-T1 appears to be an interesting option for creators who regularly use a smartphone as their primary camera and need a larger image, physical controls and more flexible mounting. Its wired USB-C connection may offer greater stability than a wireless alternative, but the DisplayPort output requirement limits compatibility and should be checked before purchase. The 400-nit brightness should be adequate for many everyday conditions, although visibility may become challenging under strong direct sunlight.

Frequently Asked Questions

Is the Viltrox DC-T1 compatible with every USB-C smartphone?

No. The connected device must support DisplayPort video output through its USB-C port. The presence of a USB-C connector alone does not guarantee compatibility.

Can it control the smartphone camera?

Viltrox states that the DC-T1 can control focus, exposure and shooting modes through its touchscreen. The available options may vary depending on the device and camera application.

Does it include exposure assistance tools?

Yes. The monitor supports False Color, allowing users to evaluate exposure more quickly through color-coded brightness levels.

Can it be mounted on a gimbal or camera cage?

Yes. It includes a cold shoe, a 1/4-inch thread and an ARRI-style locating interface, providing several mounting options.

Can it charge the smartphone while in use?

The DC-T1 supports reverse charging to extend the smartphone’s operating time. The available description does not specify the exact charging power.
